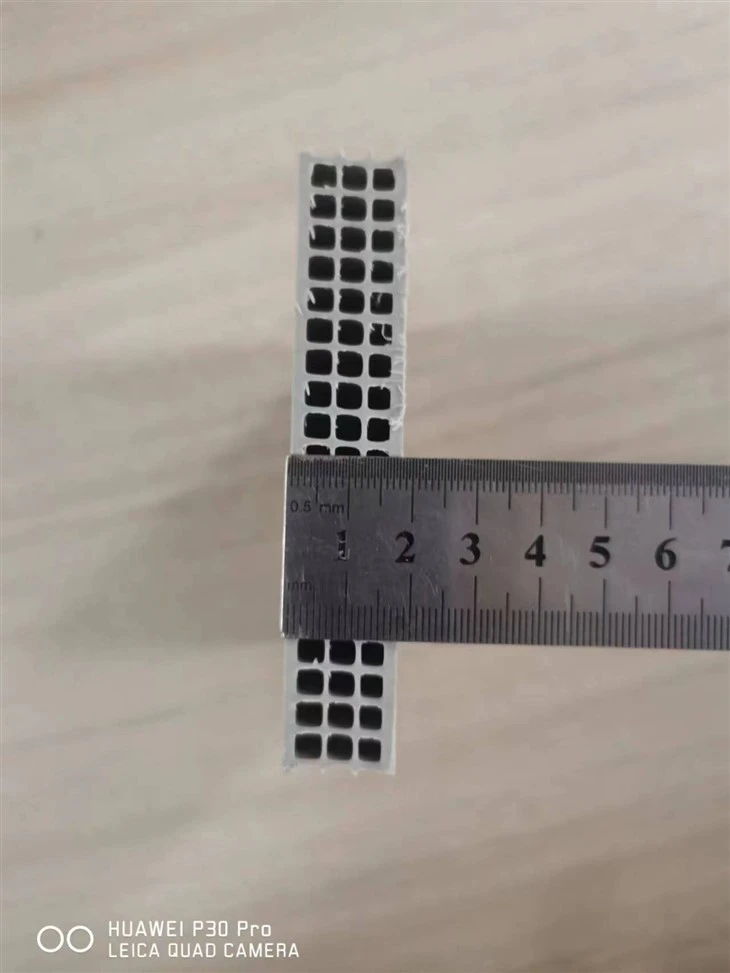

Concrete Building Construction Plastic Mould

Advantages:

1. Replace of the plywood and metal formwork. Friendly to environment and energy saving.

2. Can be recycled for more than 30 times. Very economic and cost saving.

3. Easy to Install and move and deliver and save labor.

4. Subject to any temperature and humid regions.

5. Easy to take off from the concrete. Easy to relase mold.

6. Fire resistant, safe use.Customised Size PVC Materials Plywood Steel Frame Formwork Panel

7. Light blue color and it is lovely in the working site.

8. Light texture, transportation and operation is easy.

9. Can be like wood as drilling, saw, nail, planer, etc.

10.Can be applicable to hot forming, heating and folding process.

Firstly, for starters, Zero CaCO3 unique formulations ensure our formwork premium quality. CaCO3 formwork are easier to deform under the burning sun for a longer time. Below are comparisons between zero-caco3 formwork and Caco3 formwork. Left is our 0-caco3 formwork and right is caco3 formwork.

Secondly, our dimensions are accurate to within ±0.1mm,and density is accurate to within ±0.02. The horizontal variation rate by heating is -0.15%, and vertical variation rate is -1.35% and our Diagonal tolerance is below 3mm.

Thirdly, the surface hardness of our formwork is 80-90Shore D,and others is 60-65Shore D,below are picture comparison. Left is our formwork and right is others' formwork. Non deform and Non warp 8*4ft size plastic concrete slab forms panel.

Fourthly, our quality formwork can be used 50+ times, and our formwork are also recyclable,and its cost is more cost effective than other formwork.

Fifthly, the nail holding capacity and demoulding effect of our formwork are much better,no release agent is required for demoulding,below are pictures for your info:

Sixthly, blue color is our own patented color, only our own unique raw materials and formulations can make blue color formwork,the surface is mirror finish, and the foam is solid without holes to guarantee its higher supporting capacity and avoid concrete,earth and other items entering. Below are our pictures for your info:

Seventhly, our current daily production capacity is 1no of 40HQ, and monthly production capacity is 30nos of 40HQs, being able to meet different clients' urgent and larger orders' requirements.Below is our continuous production picture for your info:

Assembly Instructions:

1. Assemble Panels:
Align PVC panels edge-to-edge; secure with clamps or screws.
Seal joints with silicone to prevent leaks.
2. Install Bracing:
Use PVC pipes or lumber as vertical/horizontal braces.
Anchor braces to the ground or existing structures.
3. Apply Release Agent: Coat inner surfaces evenly before pouring concrete.

Installation Guidelines:

Spacing: Ensure panels are parallel and spaced to match concrete thickness.
Reinforcement: Place rebar/spacers inside the formwork as needed.
Alignment: Check with a level; adjust braces to prevent bowing.
Support: Brace corners and mid-sections to withstand concrete weight.

Parameter：

The manufacturing process of plastic hollow templates generally includes the following steps: first, design the structure and size of the template according to the size and shape of the required product. Then, heat the plastic material to a molten state and inject it into the template. After the plastic cools and solidifies, remove the template to obtain the hollow shaped plastic product.

Packing:

1. Loose Packing: (Load more quantity and save cost)

2. Pallet packing: (Easy to Load and Lade)

Production of Our Plastic Hollow Templatge
