Introduction:

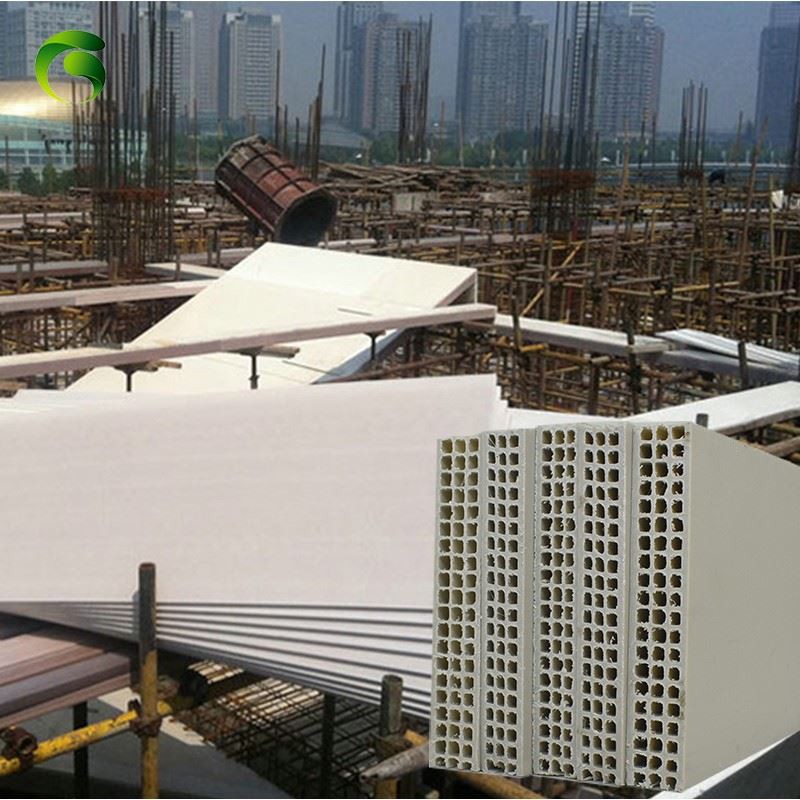

Name: Hollow Formwork for Column Concrete
Place of Origin: Shandong, China
Brand Name: GREEN PLASTIC
Model Number:GP-PP-15
Application: Wall, beam, column concrete pouring
Color: grey
Size:8*4 for mainly size
Thickness:12mm-20mm
Feature: waterproof, no need of releasing agent
Reusable Times: On average 60 times
Quick details:
The pp hollow plastic concrete formwork produced by Green Plastic uses imported polypropylene as basic material, adding chemical additives toughening, flame resistance, weather resistance and anti-aging, smelt and form new construction material through chemical molecular structure reorganization.
This hollow plastic concrete formwork is according to the principle of structural mechanics, neatly arranged, increased four times support, Stronger and more robust;On both sides of the formwork are right angle processing, increasing the bear capacity, construction is more convenient. Hollow principle makes the product expansion coefficient small.
Specification data:
| Test Item | PP HOLLOW FORMWORK | ||||
| Plastic Hollow Formwork for Column Concrete | Requirement | Testing Result | Judge | Test Method | |
| Shore hardness (D) | ≥58 | 65.5 | Approved | GB/T 2411-2008 | |
| Simple bracket unnotched impact strength, kJ/m^2 | ≥30 | 33.7 | Approved | GB/T 1043.1-2008 | |
| Dimensional change after heating, % | Landscape | ±0.2 | ±0.1 | Approved | jg/t418-2013 7.2.7 |
| Portrait | ±0.2 | ±0.1 | Approved | ||
| Nail withdraw (N) | 741 | Approved | GB/T 17657-2003 4.21 | ||
Features of this hollow plastic formwork for concrete:
1. Light weight, high strength, high hardness, impact resistance, wear resistance.
2. Surface is smooth, bright and clean; Concreting and forming effect is good.
3. No absorption of moisture, no deformation, no mildew; Long-term immersion stratification in the water, no bubbles, sheet size stability, especially suitable for underground and damp environment.
4. Good toughness. It could be used as cambered special-shaped formwork.
5. Acid and alkali resistance, corrosion resistance; Very suitable for the engineeringapplication in
coastal areas, mine, as well as seawall. It is need not do any preservative treatment both in using and storing the formwork, which do not pollute the concrete surface.
Packing and Shipping:
1. Bulk packing. 560pcs for 20GP container, 1092 PCS for 40 HQ container. This is for 15mm thickness.
2. Pallet Packing:
Delivery TIme:
For one 40HQ container in 26 tons with one week can ship to local port.
WIth 30000 SQM per month production capacity.
Port available: Qingdao, Tianjin, Shanghai are available.
