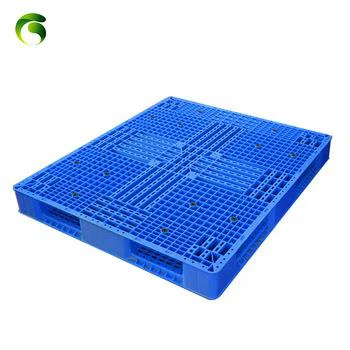

Mesh surface HDPE plastic pallet:
Place of Origin:Shanghai, China
Brand Name:PG
Model Number:GP1210
Type:Euro Pallet
Material:Plastic, HDPE/PP
Style:Single Faced
Entry Type:4-Way
Dimensions (MM):1200*1000*150
Reference Weight (KG):17-26.2 (Option: With steel tubes)
Load Capacity (T):Static 4, Dynamic 1.2, Racking 0.5-1.2
Entry Size (W*H, MM):250*90
Middle Block Width (MM):300
Handling By:Forklifts
Manufacturing Process:Plastics injection, welded, with steel tubes
Introduction:
Model GP1210
Description 1210 Vented Crisscross Pallet
Dimensions (MM) 1200*1000*150
Reference Weight (KG) 17-26.2 (±0.5) (Option: With steel tubes)
Load Capacity (T) Static 4, Dynamic 1.2, Racking 0.5-1.2
Entry Size (W*H, MM) 250*90
Middle Block Width (MM) 300
Handling Tool Forklifts (For special tools, please advise in advance)
Material HDPE/PP
Manufacturing Process Plastics injection, welded, with steel tubes
Color Green, Blue, Red, etc. (Colors for top and bottom can be different)
Environment Temp. (℃) +45~-30
Application It is a vented crisscross welded pallet, with 4-way entry. The vented surface is designed for dust removal and easy cleaning. The anti-slip rubbers on the surface prevent the goods from slipping while the inside steel tubes increase the strength of the pallet. It can be used for stacking, racking, automatic warehouse system, etc. For special application, please inquire us.
Delivery (DAY) 15-30
Remarks The file is subject to change without notice.
Compare a new materials and used materials pallet:
1. New materials pallet is glossy surface, it looks very shiny, hard and new.
2. Used materials pallt is a lottle dark and matt surface, and smells bad taste.
Consider the material:
PP
Also known as polypropylene, it is a semicrystalline thermoplastic.
It has high impact resistance, mechanical sub-strong, resistant to a variety of organic solvents and acid-base corrosion.
Polypropylene mainly used in the production of plastic pallets, plastic tables and chairs, plastic trash cans, plastic film and so on.
PE
The name is polyethylene, which is one of the most commonly used polymer materials in daily life. Polyethylene is resistant to a variety of organic solvents, resistant to a variety of acid-base corrosion, but not antioxidant acids, such as nitric acid.
It could be oxidized in an oxidizing environment.
Polyethylene is used in large quantities to make plastic trays, plastic trash cans, plastic tables and chairs, plastic bags, plastic film, milk barrel products.
Production:
Consider the main parameter:
For pallet, the load capacity is the most important parameter.
There are three dimensions to reflect the load capacity: Static load, Dynamic load, Racking/shelf load.
Static Load
A static load is defined as a non-varying load; when weight is placed on an object that is kept at rest.
Dynamic Load
A dynamic load refers to the weight that is placed on an object and then put in motion.
Racking/Shelf Load
A racking load is the strength load rating for when a pallet is placed in a racked system.
Packing & Shipping:
1.Strength packing film
2.Delivery time: 4-6 working days.
3. Production capacity: 30000PCS per month.
