Introduction:
Plastic hollow plastic formwork slab construction is a good product to instead of plywood (phenolic board), the same usage with plywood, it can be reused more than 60 times, saving cost and time.
Basical information:
Warranty: one year or 50 reuse times on average.
After-sale Service: Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection
Project Solution Capability:graphic design
Application: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Instead Plywood(Phenolic Board)
Place of Origin:China
Brand Name:GP
Model Number:GPPPFW15
Material:Polypropylene(PP)
Feature:Hollow(Honeycomb)
Thickness:12mm, 15mm, 18mm
Weight:22-30KG/PIECE
Density:0.6g/cm3
Size:1220mm*2440mm, 4ft*8ft
Working Temperature:-35℃ to 165℃
Reusable Time:50-60 times
Color: Grey White
Specification data:
| Test Item | hollow plastic formwork slab construction | ||||
| Plastic Hollow Formwork for Column Concrete | Requirement | Testing Result | Judge | Test Method | |

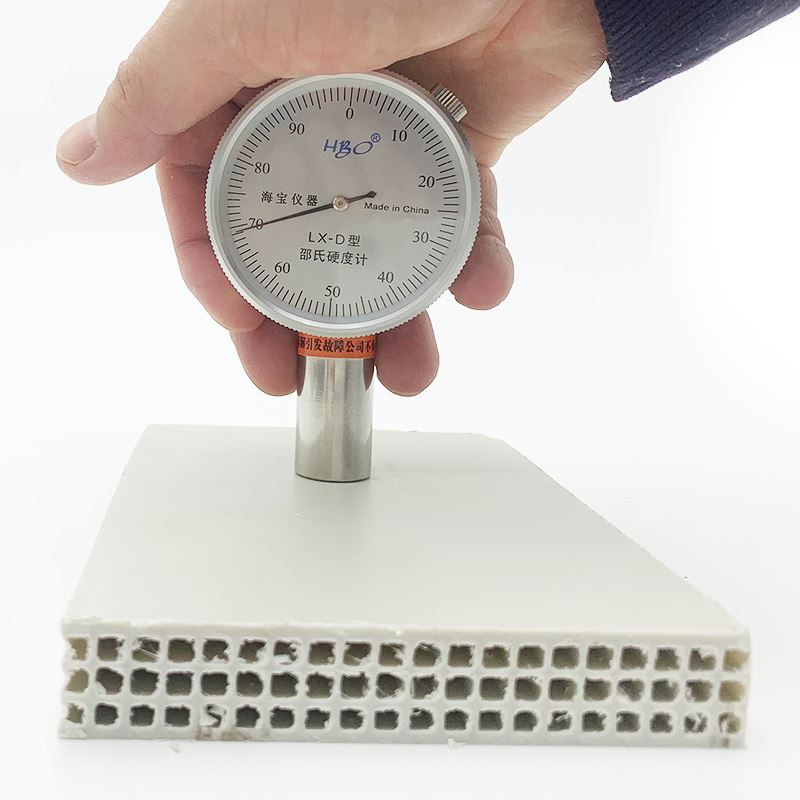

| Shore hardness (D) | ≥58 | 65.5 | Approved | GB/T 2411-2008 | |
| Simple bracket unnotched impact strength, kJ/m^2 | ≥30 | 33.7 | Approved | GB/T 1043.1-2008 | |
| Dimensional change after heating, % | Landscape | ±0.2 | ±0.1 | Approved | jg/t418-2013 7.2.7 |
| Portrait | ±0.2 | ±0.1 | Approved | ||
| Nail withdraw (N) | 741 | Approved | GB/T 17657-2003 4.21 | ||
Mechanical Data
Tensile Strength ASTM D-638 10mm/min 23.36 MPa
Elongation at Break ASTM D-638 10mm/min % >200
Bending Strength ASTM D-790 10mm/min MPa 31.9
Flexural Modulus ASTM D-790 10mm/min MPa 3050
Notched Izod Impact Strength ASTM D-256 23℃ KJ/m2 10.57
Heat Distortion Temp ASTM D-648 1.82MPa
Our unique advantage:
1. It can be reused 50-60 times.
2. Light weight, high strength, anti-cracking, anti-friction, impact resistance.
3. Waterproof(water absorption: 0.5%), corrosion resistance(acid and alkali), no deformation, size stability, no mildew, no need antiseptic treatment for using and storing.
4. Honeycomb structure make it easy to dissipate heat, avoid heat deformation.
5. No need release agent, demoulding easily, concrete surface is smooth, no need plastering.
6. Good toughness, it can be used to special-shaped structure.
7. Easy to process with sawing, drilling and nailing.
8. Glass cement can repair scratch on the board surface, small holecan be repaired by styrofoam.
9. Non-toxic, non-pollution.
10. Environment friendly, no construction waste, the leftover material and scrap board have high recycle value.
Widely used in the following:
1.large spanig loadinglarge space of multi-layer and high-rise building Such as community,shopping mall,office building,library,exhibition center,station and so on.
2.multistory factories
3.warehouse
4.underground parking
5.civil air defense project
Shipping:
1. Bulk packing. Save space and freight.
2. Pallet Packing: wooden carton, save worker's labor.
Delivery TIme:
5 days for one 40HQ conatiner ship to domestic port.
Qingdao port is nearest port. Tianjin, Shanghai also available.
Payment:
30% TT for deposit and balance payment before ship.
