60+times reuse 4x8ft 18mm 15mm 12mm PP concrete plastic slabs formwork panels for construction wall column building

Introduction:

With the rapid rise of prefabricated buildings, formwork leasing business has become an emerging operating mode for underground construction. Although the above-ground building adopts the prefabricated assembly mode, the basement and parking lot still need to be poured on site. However, the purchase of wooden formwork for underground projects requires a large investment, and the later formwork cannot be effectively used. The rent of plastic building formwork is low in cost and effective, and there is no construction waste later Generate, lease on demand, save costs, can effectively reduce the construction cost of the construction party and later management costs, save time and effort, and is the best choice for short-term construction of underground projects.

Prefabricated professional building formwork advantage 1

Basical information:

1.Product Name: Prefabricated professional building PP hollow formwork

2.Usage：building,construction,concrete pouring,door,bridge and so on

3.Color: grey white ,black green, black

3.Size:

4*8 ft or 1220*2440mm

3*6 ft or 915*1830mm

1250*2500mm

1550*3000mm

If you need other sizes of PP hollow template, we can provide customized service

4.Thickness:

12mm,15mm,18mm

Support customization within 5-25mm

5.Reuse times: 60 +

6.Higher strength,higher hardness:

70+ shore D

7.Stronger impact resistance

8.Stronger nail capacity

9.Light weight

10.Waterproof

11.Acid and alkali corrosion resistant

12.No relrase agent

13.No second plastering

Specification data:

Test Item	Prefabricated professional building PP hollow construction formwork
Plastic Hollow Formwork for Column Concrete		Requirement	Testing Result	Judge	Test Method
Shore hardness (D)		≥58	65.5	Approved	GB/T 2411-2008
Simple bracket unnotched impact strength, kJ/m^2		≥30	33.7	Approved	GB/T 1043.1-2008
Dimensional change after heating, %	Landscape	±0.2	±0.1	Approved	jg/t418-2013 7.2.7
Dimensional change after heating, %	Portrait	±0.2	±0.1	Approved	jg/t418-2013 7.2.7
Nail withdraw (N)			741	Approved	GB/T 17657-2003 4.21

The characteristics of prefabricated buildings are as follows:

1. A large number of construction parts are produced and processed by the workshop. The main types of components are: exterior wall panels, interior wall panels, laminated panels, balconies, air conditioning panels, stairs, prefabricated beams, prefabricated columns, etc.;

2. A large number of assembly operations on site are greatly reduced than the original cast-in-place operations;

3. Adopt the integrated design and construction of building and decoration. Ideally, the decoration can be carried out simultaneously with the main construction;

4. Standardization of design and informationization of management. The more standard the components, the higher the production efficiency, and the corresponding component costs will decrease. With the digital management of the factory, the cost-effectiveness of the entire prefabricated building will become higher and higher;

5. Meet the requirements of green buildings;

6. Energy saving, environmental protection and cost saving;

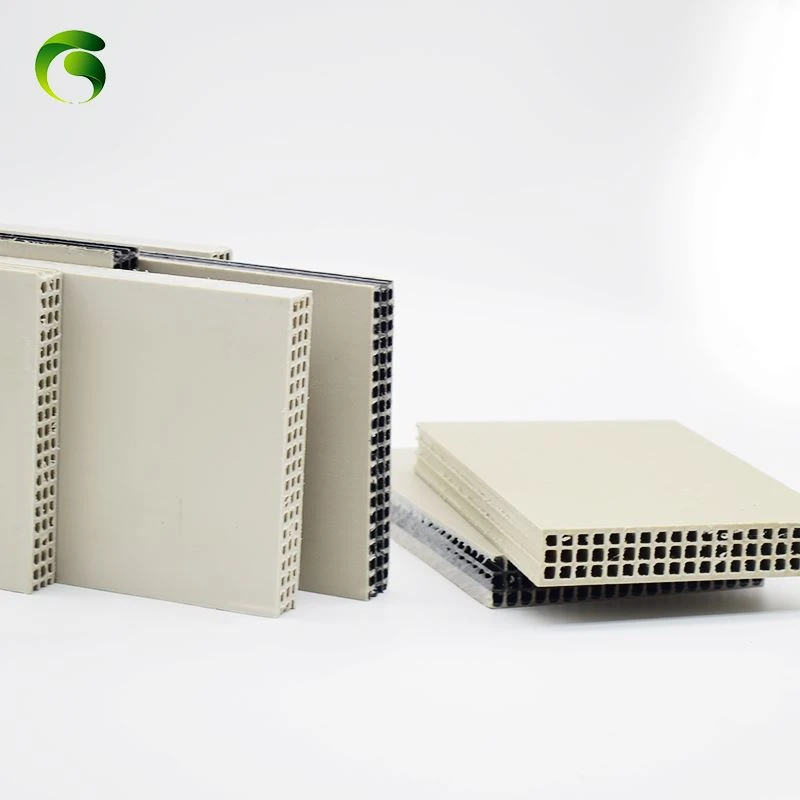

Prefabricated professional building formwork
