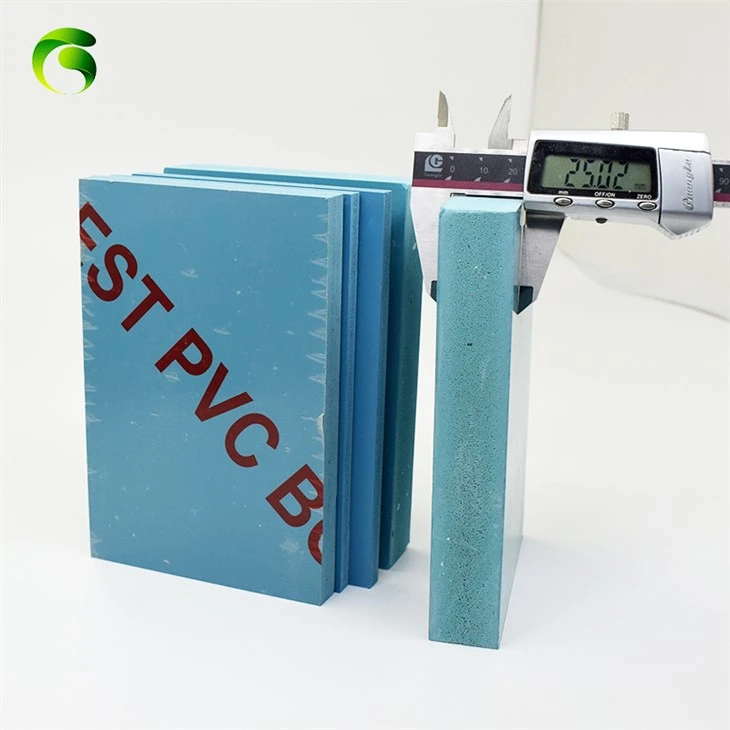

1970*500*27mm PVC Plastic Slab Formwork:
1. Dimensions:
- Length**: 1970 mm (~6.46 ft)
- Width**: 500 mm (~1.64 ft)
- Thickness**: 27 mm (~1.06 in)
Note: These dimensions are standardized for modular construction and ease of handling.
2. Material:
PVC (Polyvinyl Chloride) is lightweight, corrosion-resistant, non-absorbent, and durable. It provides a smooth surface finish for concrete.
3. Load Capacity:
The 27mm thickness offers moderate load-bearing capacity, suitable for standard concrete pours (walls, columns, slabs). Always verify with engineering guidelines for specific projects.
4. Applications
- Concrete Formwork**: Ideal for creating smooth, defect-free surfaces in walls, beams, and slabs.
- Reusable Molds**: PVC is non-stick and easy to clean, making it reusable for multiple pours.
- Harsh Environments**: Resists moisture, chemicals, and rust, perfect for coastal areas or chemical plants.
- Lightweight Projects**: Easier to handle than steel or timber, reducing labor costs.
Parameter：
| Item | Unit | Standard | Requirements | Test Result | Approved |
| Water Abosortion | % | GB/T1034-2008 | ≤0.5 | 0.2 | Yes |
| Surface hardness | H | GB/T2411-2008 | ≥58 | 70 | Yes |
| Bending Strength | MPa | GB/T9341-2008 | ≥30 | 33 | Yes |
| Dimensional Change Rateafter Heating | % | JG/T418-2013 | +0.2 | +0.1 | Yes |
Packing:
1. Loose Packing: Loading into container directly.
2. Pallet packing: Packed onto pallet first and then laod into container.
27mm Thickness formwork in production:
