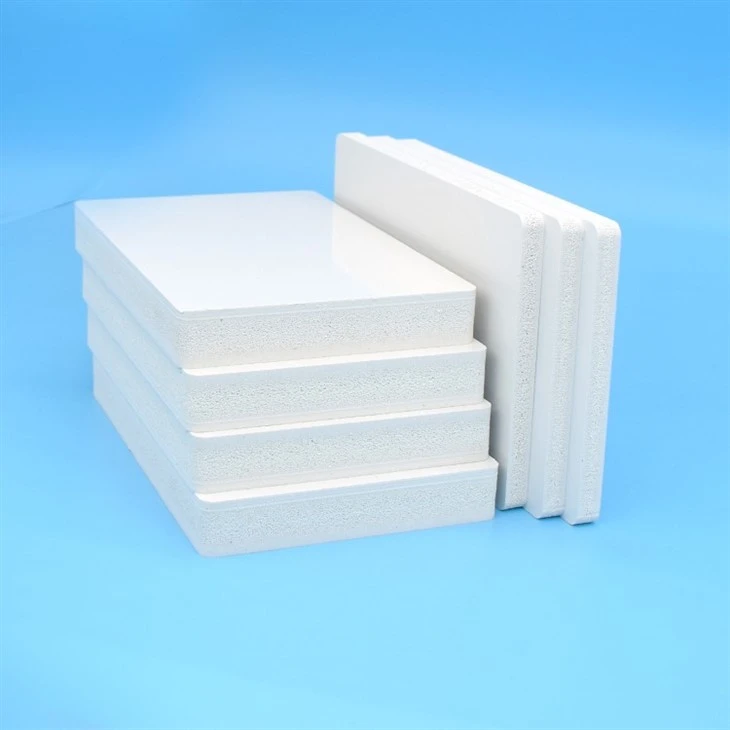

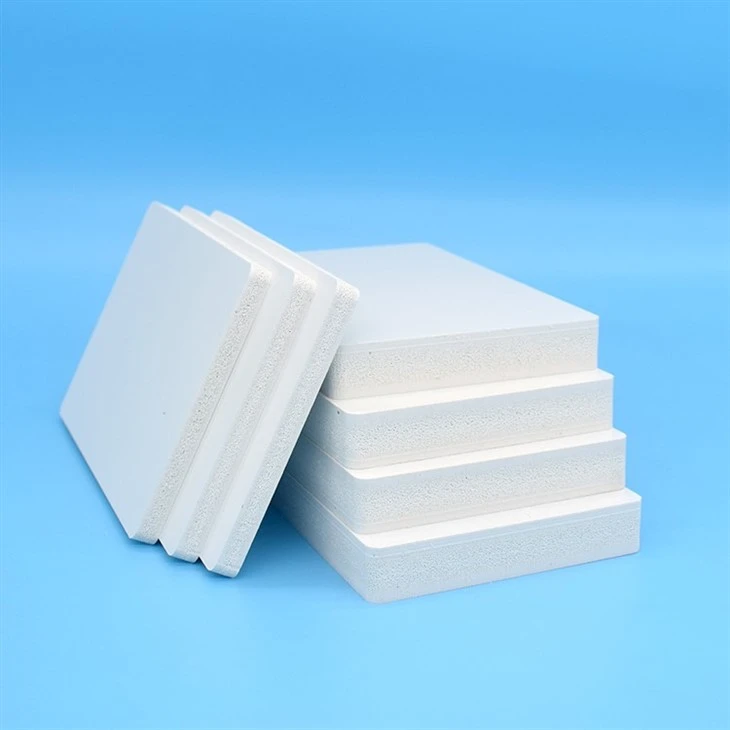

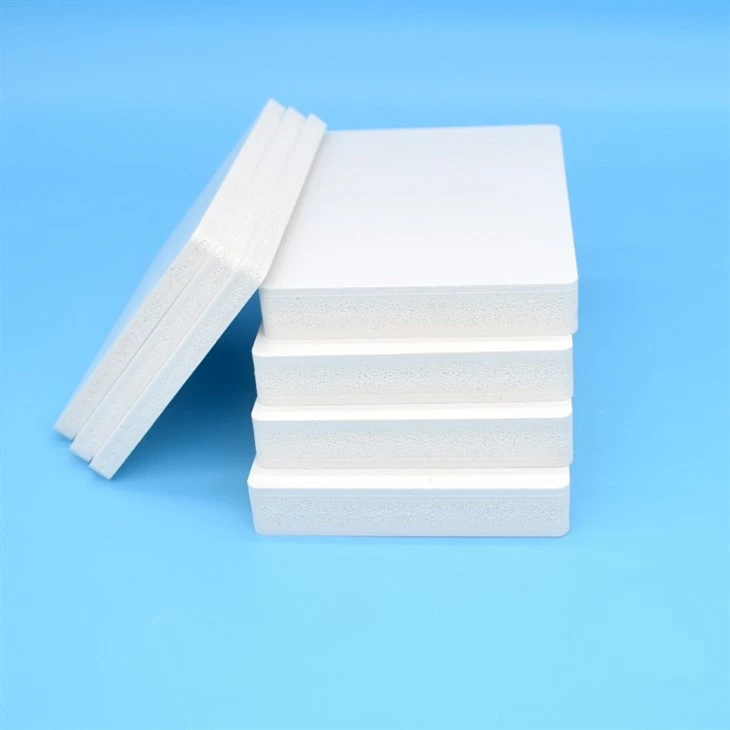

27mm 30mm Thickness PVC Concrete Formwork Panel

The conventional thickness of traditional plywood building formwork is generally 12mm, 15mm, and 18mm. The corresponding plastic formwork, such as PP hollow formwork, and PVC formwork are also correspondingly 12mm, 15mm, and 18mm. In order to meet the requirement of being able to withstand greater pressure when pouring concrete in place , our company has launched thicknesses above 20mm, such as 27mm, 30mm.

Send Inquiry

Description

Technical Parameters

27mm 30mm Thickness PVC Concrete Formwork Panel:

Size: 2440*1220mm, 3000*1000mm, 2700*500mm, 2500*1250mm.

Color: White

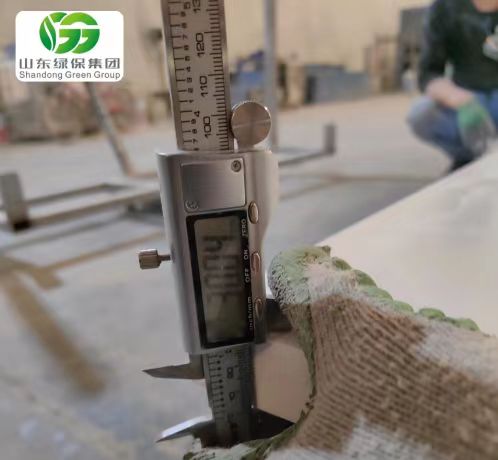

Thickness: 27mm, 30mm.

5449

Characteristics of high thickness PVC Concrete Formwork Panel:

Material： PVC powder with other addtitives.

Color：White

Denstiy 650kgs-900kgs/cbm

Feature:

1. Light and easy to install. It is light in weight, just place the formwork directly on the backing and reinforce it with nails. It has strong process adaptability, easy installation and high construction efficiency. It does not require the use of large machinery and equipment, which improves construction safety.
2. Smooth and clean, easy to demould. The formwork splicing is tight and smooth, the concrete does not stick to the board surface, no release agent is needed, and the demoulding is easy; after demoulding, the surface and smoothness of the concrete structure can meet the technical requirements of the existing clear water formwork, and no secondary plastering is required, saving labor and materials. .
3. Stable and weather-resistant. High mechanical strength, cold and high temperature resistance, no shrinkage, no swelling, no cracking, no deformation, dimensional stability, alkali and corrosion resistance, flame retardant and waterproof, rodent and insect repellent.
4. Conducive to maintenance. The template does not absorb water and requires no special maintenance or storage.
5. Energy saving and environmental protection. Glass glue can repair surface scratches; plastic plugs can repair holes with a diameter of 12-24mm. All leftover materials and waste formwork can be recycled and recycled, with zero waste emissions.

5447

Parameter：

parameter
Item	Unit	Standard	Requirements	Test Result	Approved
Water Abosortion	%	GB/T1034-2008	≤0.5	0.2	Yes
Surface hardness	H	GB/T2411-2008	≥58	70	Yes
Bending Strength	MPa	GB/T9341-2008	≥30	33	Yes
Dimensional Change Rateafter Heating	%	JG/T418-2013	+0.2	+0.1	Yes

Packing:

1. Loose Packing: Loading into container directly.

2. Pallet packing: Packed onto pallet first and then laod into container.

Production:
