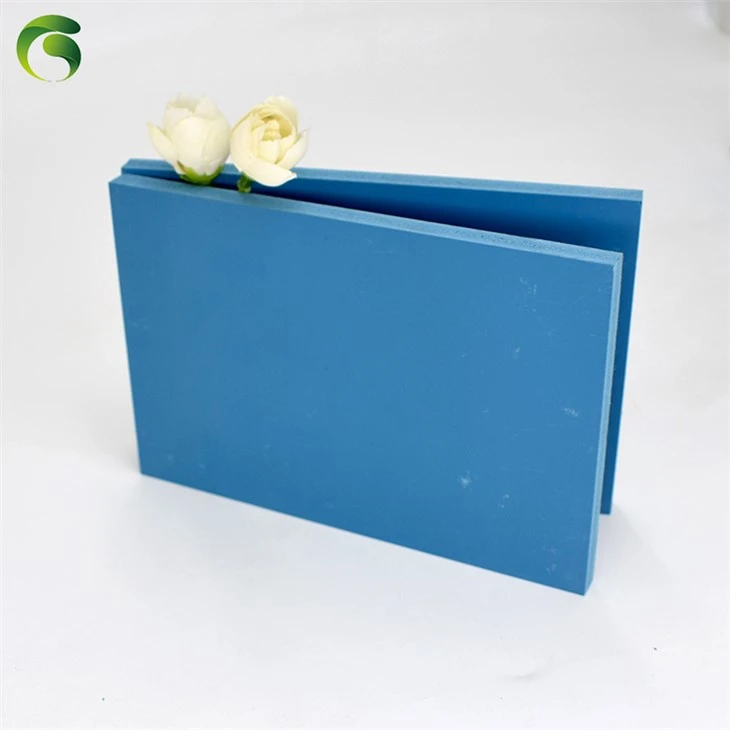

Concrete forms for shear wall:
PVC concrete forms for shear wall is a new generation formwork after troditional plywood and phenolic board. Our plastic formwork can make you 60+ reuse times on average, now our goods not only bring the big new market also for big fortune for our customes around more than 35 countries. Now 15 containers a week loading and hipping on the sea.
Basical Information:
Name: PVC materials concrete forms for shear wall
Reuse times: more than 50 turnovers.
Green and environmentally friendly products.
Size: 8*4ft 6*3ft
Color: Unique blue color
Waterproof: Yes
Fire retardant: Yes
Container loding:
| Size | Weight | Qty./20GP | Qty./40HQ |
| 8*4ft*12mm | 23 KGS | 700 PCS | 1217 PCS |
| 8*4ft*15mm | 29 KGS | 560 PCS | 965 PCS |
| 8*4ft*18mm | 34 KGS | 466 PCS | 823 PCS |
| concrete forms for shear wall | |||
Difference between other formwork:
Advantages:
1. Light weight
Lighter, the unit weight per piece is from 29-34 KGS, easier to handle and release heavy labor, manual operation reduces labor costs by 20%.
2. The surface does not need maintenance
High-pressure water jets rinse the surface of the plastic template, but the metal template requires surface maintenance. Hard and glossy surface make it very smooth and easy to take off from the shear wall, and the wall surface like a mirror.
3. Strong machinability
You can use saws, nails, drills, cutting, etc. to fit well, and is compatible with wood, steel, aluminum and other materials. By double screw machine extruded this formwork, its impact and hardness is much better than troditional plywood and phenolic board.
Property: Take a shear wall as a saple
Shear wall plastic formwork support: Take the wall height of 2800 and the wall thickness of 300 as an example, using 12mm formwork, the vertical secondary rib spacing (center distance) is 250mm; using 15mm formwork, the vertical secondary rib spacing (center distance) is 300mm .
More reuse times, and one piece board can reuse from the first floor to the top of the 30th floor building, it will save freight and lobor cost.
Compared with the normal use of bamboo plywood formwork, the spacing of the secondary corrugation and the deviation of the flatness of the concrete surface are basically the same, but the concrete surface is smooth and clean, achieving the effect of fair-faced concrete, and the look and feel is better.
More instructions will be shared after you order.
Packing and Shipping:
Bulk Packing:
Now 12mm 15mm 18mm are in stock and ready to ship.
2. Pallet Packing
Pallet packing can ship to any ports of China, Yiwu, Guangzhou and Shenzhen.
Shipping and payment terms:
Qingdao port is the main port. Tianjin, Shanghai also.
TT 30% deposit and balance 70% TT before shipping.
