What is it?
Its key characteristics are:
Material: Made from Polypropylene (PP), a durable, lightweight, and moisture-resistant plastic.

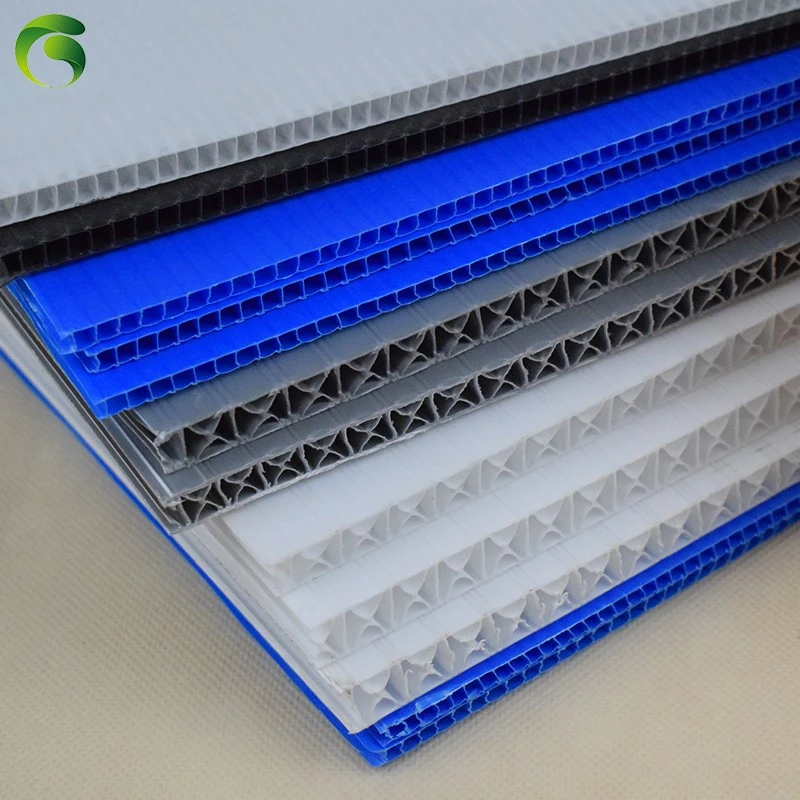

Structure: Features a fluted/corrugated core sandwiched between two flat linerboards. This structure provides excellent rigidity and impact resistance while keeping the material very light (similar to traditional cardboard correx used in signage, but with ESD properties).
Key Property: Engineered to be Electrostatic Discharge (ESD) safe. This means it either prevents the buildup of static electricity (antistatic) or safely dissipates any existing charge to the ground (static dissipative), protecting sensitive components.
Key Features and Benefits:
ESD Protection: The primary function. It safeguards static-sensitive devices like integrated circuits (ICs), printed circuit boards (PCBs), and other electronic components from damage caused by ESD, which can often be invisible but catastrophic to functionality.
Lightweight & Durable: Polypropylene is strong and impact-resistant. The fluted core provides exceptional strength-to-weight ratio, making it perfect for shipping and handling applications without adding significant weight.
Moisture & Chemical Resistance: Unlike paper-based ESD materials (e.g., pink poly or carbon-loaded cardboard), PP is completely impervious to water, oils, and most chemicals. This prevents warping, weakening, and contamination.
Reusable & Long-Lasting: These sheets are much more durable than their cardboard counterparts. They can be used multiple times for internal handling, trays, dividers, and packaging, offering a better long-term return on investment.
Cleanroom Compatible: PP is a low-particulate material, making it suitable for use in ISO-classified cleanrooms where contamination from dust or fiber shedding is a critical concern.
Customizable: They can be easily die-cut, scored, folded, and fabricated into custom boxes, trays, tote boxes, dividers, and workspace liners.
How Does the ESD Protection Work?
The ESD property is not inherent to plain polypropylene. It is achieved by incorporating carbon or other conductive additives into the plastic resin during the manufacturing process. This creates a permanent conductive network throughout the entire sheet, giving it consistent Surface Resistivity and Volume Resistivity within a safe range.
Surface Resistivity: Typically in the range of 10^6 to 10^9 ohms/sq (according to standards like ANSI/ESD S20.20).
10^6 - 10^8 ohms/sq is considered Static Dissipative (safely drains charge).
10^9 - 10^11 ohms/sq is considered Antistatic (resists triboelectric charging).
This ensures that any static charge is dissipated slowly and safely to ground, rather than building up and creating a spark.
Common Applications
This material is ubiquitous in industries where electronics are manufactured or handled:
ESD-Safe Packaging: Boxes, clamshells, and sleeves for shipping and storing PCBs and components.
Worksurface Mats: Used to line workbenches in electronics assembly areas.
Dividers & Liners: Used inside storage bins and shelving (e.g., ESD-safe versions of Kanban systems) to compartmentalize and protect parts.
Racks & Trays: Fabricated into custom trays for automated handling and transport during the manufacturing process.
Shipping & Logistics: As durable, protective layer sheets within larger containers to separate and shield sensitive products.
Comparison: ESD PP Flute vs. Traditional ESD Cardboard
| Feature | ESD PP Corrugated Sheet | ESD Cardboard / Corrugated |
|---|---|---|
| Durability | High - Impact and tear-resistant | Low - Easily damaged, corners wear out |
| Moisture Resistance | Excellent - Fully waterproof | Poor - Loses strength and ESD properties when wet |
| Reusability | Excellent - Can be used dozens of times | Poor - Typically single-use or limited reuse |
| Cleanliness | Excellent - Low particulate, cleanroom safe | Fair - Can shed paper fibers and dust |
| Weight | Lightweight | Lightweight (but can be heavier when damp) |
| Cost | Higher initial cost | Lower initial cost |
| Best For | Reusable packaging, humid environments, cleanrooms, demanding applications | One-way shipping, low-budget, dry environments |
