Production Introduction
PP hollow building template is one of many building formworks. It is a new generation formwork. It shares the same usages, functions, shape and even size with troditional plywood formwork. But its high resue times make it cost saving and popular.
Features:
1. Safety: No any poisonous or harmful gas relasing.
2. Stripping off or demouldiing easily: No need brushing release agent oil or grease, only tapping, the formwork will fall off.
3. Time saving and high work efficiency : Shorten working hours and speed up the construction schedule efficiently.
4. Easy to process or treatment easily : Sawing, drilling and nailing are all available.
5. Easy install and operate : Formworks can be combined vertically and horizontally optionally.
6.Especially suitable for high-rise buildings with more than 10 floors: A set of formwork system can be used from the first floor to the 30th floor, saving time and cost greatly.
7.Easy to remove. Removing is convenient, quick and safe.
8.Cost saving: So much reuse times make it much more compatitive than less times reuse plywood and bamboo or other metal formworks. Its unit time cost less than a dollor.
9.Weather resistance: No bending under sunshine and rain.
Specification:
| Shore Hardness | 70-75D |
| Nail holding power | 741N |
| Reuse Times | 60 on average |
| Tensile Strength | ≥25Mpa |
| Impact Strength | 30KJ/M2 |
| Bending Strength | ≥30Mpa |
| Flexural Modulus | ≥3000Mpa |
Packing:
1. Loose Packing and Container Loading Numbers:
| Size | Thickness | Wight: KGS/PC | Qty./20GP | Qty./40HQ |
| 2440*1220mm | 12mm=1/2'' | 22.3KGS | 735 PCS | 1255 PCS |
| 2440*1220mm | 15mm=5/8'' | 24.1KGS | 588 PCS | 1162 PCS |
| 2440*1220mm | 18mm=3/4'' | 28.3KGS | 490 PCS | 990 PCS |
2. Pallet Packing and Container Loading Numbers:
| Size | Thickness | Weight/PC | Qty./20GP | Qty./40HQ |
| 2440*1220mm | 12mm=1/2'' | 22.3 KGS | 584PCS/8Pallets | 1224PCS/16Pallets |
| 2440*1220mm | 15mm-5/8'' | 24.1 KGS | 468PCS/8Pallets | 984PCS/16Pallets |
| 2440*1220mm | 18mm=3/4'' | 28.3 KGS | 392PCS/8Pallets | 816PCS/16Pallets |
Using Instructions:

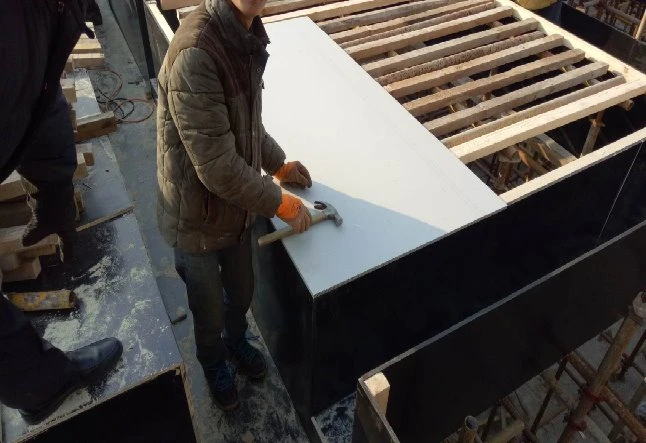

1.Roof or slab: The spacing between mold ribs should not exceed 20-25cm.
2.Column & Shear wall: The spacing between mold ribs should not exceed 10*15cm.
3.Shear wall: horizontal screw spacing <=50cm, vertical screw spacing <=45cm.
4.When nail the formwork, the spacing between the edge and nailing point is 15cm to 30cm.
5.The height of the nail usually in 40-50mm.
