Introduction:

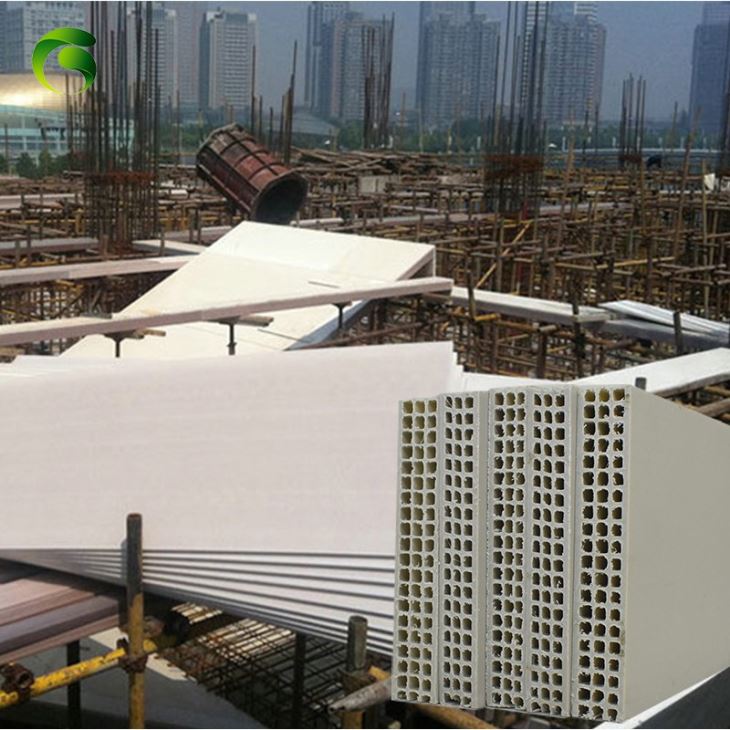

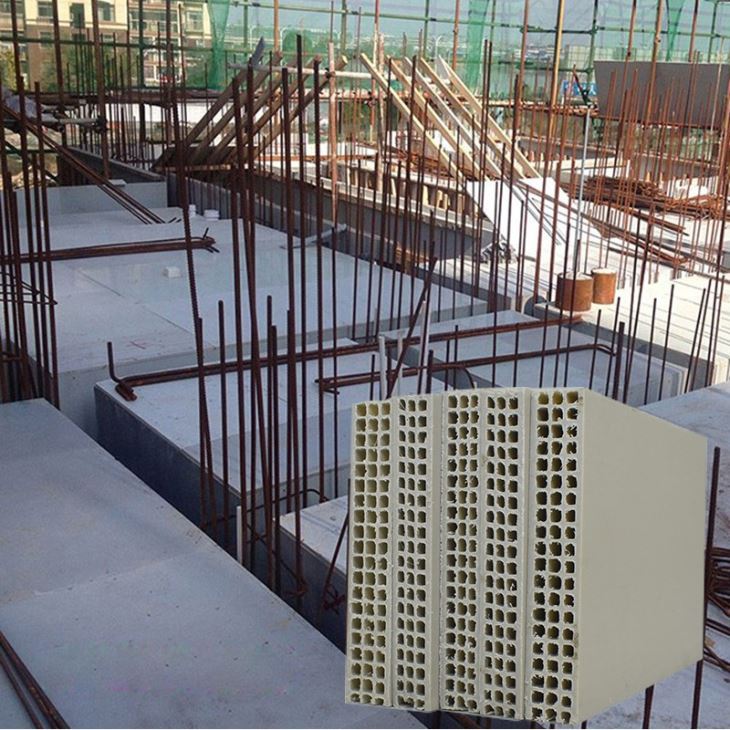

PP Hollow shuttering panel formwork is bew kind of formwork in nowadays.
With more than 50 times reuse, nealy 0.21 USD cost per time per SQM, make it popular and cost saving.
This plastic formwork share the same usage with plywood and will replace plywood in the near future because of its eco friendly and cost effective.
Now 12 15 18mm thickness with 8*4ft size available in stock.
Welcom your inquiry and order.
Quick details:
Hollow plastic building formwork is a kind of energy-saving and green environmental protection and water proof product, pp plastic combined with macromolecule nano-technology. It is a new product after wood formwork, composite steel formwork, bamboo-wood bonding formwork and all-steel large formwork. It is cost saving and environmental protection, and can completely replace the traditional steel formwork, wood formwork, square wood.
Size: 2440*1220mm
Thickness: 15mm
Weight per piece: 24KGS
MOQ: 560 pieces per 20GP container
Specification data:
| Test Item | PP hollow shuttering formwork panel | ||||
| Plastic Hollow Formwork for Column Concrete | Requirement | Testing Result | Judge | Test Method | |
| Shore hardness (D) | ≥58 | 65.5 | Approved | GB/T 2411-2008 | |
| Simple bracket unnotched impact strength, kJ/m^2 | ≥30 | 33.7 | Approved | GB/T 1043.1-2008 | |
| Dimensional change after heating, % | Landscape | ±0.2 | ±0.1 | Approved | jg/t418-2013 7.2.7 |
| Portrait | ±0.2 | ±0.1 | Approved | ||
| Nail withdraw (N) | 741 | Approved | GB/T 17657-2003 4.21 | ||
The Characteristics Of Production Line:
1. The Whole Line Adopts Advanced Technology , With Fast Line Speed ,And Using High Rotation Speed Screw,High Capacity;
2.Special And Unique Design Of Die,Calibration Unit ,Cooling Unit System And Vacuum Exhausting System Guarantee High Speed Of The Extruding And Calibrating ; More Anti-Wear ,Better Dust Removal,Good Calibrating And More Easily To Operate;
3.Special Design Of The Anneal Oven , More Easily To Adjust The Flatness Of Sheet;
4.The Softness Of Tractor Roller Can Be Designed According To Customer’s Requirement;
General Operation And Notes Of Instrument For pp hollow formwork shuttering:
Method of use as well as wooden formwork, plastic formwork reinforcement direction with batten direction placed in cross shaped.
No need to smear the mold release agent before using formworks.
When cast-in-place the flat plate, spacing between the keels should be 20 ~ 25 cm, and the spacing between the wall plate and keels hould be 10 ~ 20 cm.pp hollow plastic concrete formwork no need releasing agent lightweight concrete panels best formwork as world.
The strength to drive nailsshould be moderate.
When removing the formwork, please start from the small part of one end, the support and the plates should be removed at the same time aiming at preventing the template widespread drops, don't let the corner drop on the ground vertically.
FAQ:
1.Q: Are you a manufacturer or trading company?
A: We are 75% shares in control of the production.
2.Q: How can I get some samples?
A: Sample fees, first time you offer the express account of bear the shipping fees.
3.Q: How many times does your formwork reused?
A:It can be reused on average 60 times.
4..Q: Does this formwork stick concrete?
A: It is easy to take off from the wall and no need any oild or agent.
5.Q: How to clean the used formwork?
A: Only using the high-pressure water gun.
6. Q: what are your foreigh markets?
A: Middle East countries, Africa countries, the eastern European countries and Southeast Asia countries.
Packing and Shipping:
1. Bulk packing.
466PCS for 20 GP conatiner. 982 PCS for 40 HQ conatiner for 18mm thickness in 8*4ft size.
2. Pallet Packing:
Delivery TIme:
For one 40 HQ container can finish within 2 days and ship to local port within 5 days.
Qingdao port is nearest port.
Sample: sample for fee, but shipping fees bore by buyer first, will refund you after you order or deduct from the total value.
